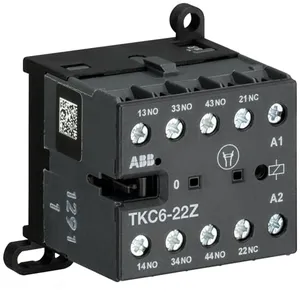

| Weight | 0.18 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.0525x0.0575x0.0465 m |
| EAN code | 4013614243165 |
| Product group | SA |
| cn8 | 8536 50 80 |
| eclass | V11.0 : 27371001 |
| etim 7 | EC000196 - Contactor relay |
| etim 8 | EC000196 - Contactor relay |
| unspsc | 39121500 |
| remarks | No CA6 or CAF6 mountable |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1 |
| power loss | at Rated Operating Conditions per Pole 0.32 W |
| rohs status | Following EU Directive 2011/65/EU |
| mounting type | DIN-RailScrew |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| eac certificate | https://library.abb.com/d/1SAA938001-2701 |
| number of poles | 4 |
| coil consumption | Average Holding Value DC 5 WAverage Pull-in Value DC 5 W |
| rohs information | https://library.abb.com/d/1SAD938517-0001 |
| mounting position | 1 ... 6 |
| tightening torque | Auxiliary Circuit 0.8 ... 1.1 N·mControl Circuit 0.8 ... 1.1 N·m |
| eplan catalog tree | Electrical engineering / Relays, contactors / Contactors |
| mini contactor type | Mini Contactor Relay |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCControl Circuit DCMain Circuit 60 HzMain Circuit 50 HzMain Circuit DC |
| degree of protection | Auxiliary Circuit Terminals IP20Control Circuit Terminals IP20 |
| low coil consumption | No |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| mechanical durability | 10000000 cycle |
| wire stripping length | Auxiliary Circuit 9 mm |
| ambient air temperature | Operation -30 ... +70 °CStorage -40 ... +85 °C |
| fire and smoke standards | EN 45545 (Hazard levels HL2, HL3) |
| environmental information | https://library.abb.com/d/1SAC200069H0009 |
| eplan function definition | Coil / Coil, 2 connection points / Coil for power contactor A1_A2NO contact / NO contact, 2 connection points / NO auxiliary contact 43_44NO contact / NO contact, 2 connection points / NO auxiliary contact 13_14NC contact / NC contact, 2 connection points / NC auxiliary contact 31_32NC contact / NC contact, 2 connection points / NC auxiliary contact 21_22 |
| general use rating ul/csa | (600 V AC) 5 A |
| rated operational voltage | Auxiliary Circuit 690 V ACAuxiliary Circuit 250 V DC |
| minimum switching capacity | 17 V5 mA |
| number of main contacts nc | 0 |
| number of main contacts no | 0 |
| object classification code | K |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938517-0001 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1001 |
| maximum operating voltage ul/csa | Auxiliary Circuit 600 V AC/DC |
| short-circuit protective devices | gG Type Fuses 6 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100214C0202 |
| rated control circuit voltage (uc) | 50 ... 90 V DC |
| rated operational current ac-15 (ie) | (24 V) 4 A(120 V) 4 A(240 V) 4 A(400 V) 3 A(500 V) 2 A |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
| resistance to vibrations acc. to iec 60068-2-6 | 3g / 3 ... 150 Hz |
