| Weight | 0.025 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.0203x0.0485x0.0515 m |
| EAN code | 4013614051050 |
| Product group | SA |
| eclass | V11.0 : 27371302 |
| etim 4 | EC000041 - Auxiliary contact block |
| etim 5 | EC000041 - Auxiliary contact block |
| etim 6 | EC000041 - Auxiliary contact block |
| etim 7 | EC000041 - Auxiliary contact block |
| etim 8 | EC000041 - Auxiliary contact block |
| unspsc | 39121522 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| rohs status | Following EU Directive 2011/65/EU |

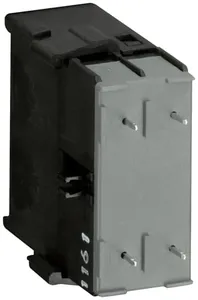

| product name | Auxiliary Contact |
| suitable for | B6-30-01-PBC6-30-01-PB7-30-01-PBC7-30-01-P |
| cb certificate | https://library.abb.com/d/1SAA938001-2001 |
| ul certificate | https://library.abb.com/d/UL_E48139 |
| ur certificate | https://library.abb.com/d/1SAA938000-1801 |
| cqc certificate | https://library.abb.com/d/CQC2003010304064035 |
| eac certificate | https://library.abb.com/d/1SAA938002-2701 |
| number of poles | 2 |
| rmrs certificate | https://library.abb.com/d/1SAA938001-0704 |
| rohs information | https://library.abb.com/d/1SAD938517-0001 |
| curus certificate | https://library.abb.com/d/cUL_E48139 |
| dimension diagram | https://library.abb.com/d/GJL1200445F0001 |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DC |
| degree of protection | IP20 |
| contact rating ul/csa | A600 |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +80 °C |
| rated operational voltage | Auxiliary Circuit 690 V ACAuxiliary Circuit 250 V DC |
| number of main contacts nc | 0 |
| number of main contacts no | 0 |
| object classification code | K |
| suitable for product class | Mini Contactors |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938517-0001 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001309 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1001 |
| maximum operating voltage ul/csa | 600 V AC |
| data sheet, technical information | https://library.abb.com/d/1SBC100214C0202 |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
| conventional free-air thermal current (ith) | Auxiliary Circuit 6 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 5 ... 150 Hz |
