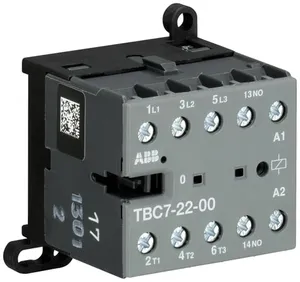

| Weight | 0.185 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.0525x0.0575x0.0467 m |
| EAN code | 4013614264252 |
| Product group | SA |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| remarks | No CA6 or CAF6 mountable |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1 |
| power loss | at Rated Operating Conditions per Pole 2 Wat Rated Operating Conditions AC-1 per Pole 1.4 W |
| rohs status | Following EU Directive 2011/65/EU |
| kc certificate | https://library.abb.com/d/1SAA938000-1501 |
| eac certificate | https://library.abb.com/d/1SAA920000-2702 |
| number of poles | 4 |
| rohs information | https://library.abb.com/d/1SAD938517-0001 |
| tightening torque | Control Circuit 0.8 ... 1.1 N·mMain Circuit 0.8 ... 1.1 N·m |
| mini contactor type | Mini Contactor |
| rated frequency (f) | Control Circuit DCMain Circuit 60 HzMain Circuit 50 HzMain Circuit DC |
| degree of protection | Control Circuit Terminals IP20Main Circuit Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| coil operating limits | (acc. to IEC 60947-4-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C) |
| mechanical durability | 10000000 cycle |
| wire stripping length | Main Circuit 9 mm |
| ambient air temperature | Operation -30 ... +70 °CStorage -40 ... +85 °C |
| environmental information | https://library.abb.com/d/1SAC200068H0009 |
| rated operational voltage | Main Circuit 690 V ACMain Circuit 220 V DC |
| number of main contacts nc | 2 |
| number of main contacts no | 2 |
| object classification code | Q |
| rated insulation voltage (ui) | 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938517-0001 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm2Flexible 1/2x 1 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1001 |
| data sheet, technical information | https://library.abb.com/d/1SBC100214C0202 |
| rated operational power ac-3 (pe) | (230 V) Three Phase 3 kW(400 V) Three Phase 5.5 kW(500 V) Three Phase 5.5 kW(690 V) Three Phase, NC 3 kW(690 V) Three Phase, NO 3 kW |
| rated control circuit voltage (uc) | 77 ... 143 V DC |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm2Flexible 1/2x 1 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| rated operational current ac-1 (ie) | (220 / 240 V) 40 °C 20 A(220 / 240 V) 55 °C 16 A(380 / 440 V) 40 °C 20 A(380 / 440 V) 55 °C 16 A(690 V) 40 °C 6 A(690 V) 55 °C 6 A |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-3) 600 cycles per hour(DC-1) 600 cycles per hour(DC-3) 600 cycles per hour |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
| conventional free-air thermal current (ith) | Main Circuit 20 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 5 ... 150 Hz |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A |
