ABB

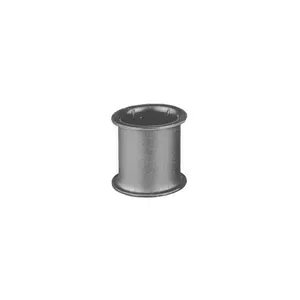

GMN 977120P0012

Product type: D01X4GL

D01x4gG D01 Schmelzeinsatz 4A,gG ¦ D01x4gG D01 FUSE LINK 4A,gG

Datasheet

RoHS Compliant

Description

The D0 fuse range comprises the standardized fuse sizes D01 and D02. D0 fuse links of operating class gG are suitable for standard applications for the protection of electronic devices and lines. The fuses are available in current ratings from 2 A to 63 A. D01X4GL

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
Cylindrical and D0 Fuses

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on GMN 977120P0012.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.006 KG / psc.
Commodity number	85361010
Country of origin	DE
Dimensions (WxHxD)	0.011x0.024x0.036 m
EAN code	4012233604906
Product group	AR
cn8	8536 10 10
eclass	V11.0 : 27142119
etim 7	EC001642 - D0-system fuse link
etim 8	EC001642 - D0-system fuse link
fuse size	D01 (E14)
fuse type	Neozed
standards	DIN EN 60269-1 (VDE 0636-1)DIN VDE 0636-3 (VDE 0636-3)
power loss	1.5 Wat Rated Operating Conditions per Pole 1.6 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
release type	gG: Used for general protection of cables and lines in low voltage distribution units.
current range	2 ... 63 A
voltage range	400 ... 440 V AC
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
vde certificate	https://library.abb.com/d/9AKK108466A4930
rohs information	https://library.abb.com/d/2CDK440042D2701
eplan catalog tree	Electrical engineering / Protection devices / Safety fuse
rated current (in)	4 A
rated voltage (ur)	400 V250 V DC
rated frequency (f)	45...62 Hz
certification agency	VDE
construction material	Ceramic
maximum breaking capacity	50 V ACAC8 V DC
cut-off current characteristic	https://library.abb.com/d/9AKK108467A0443
declaration of conformity - ce	https://library.abb.com/d/2CDK440042D2701
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
time-current characteristic curve	https://library.abb.com/d/9AKK108467A0442
