BAE000J

Product type: BAE LX-VS-RR100

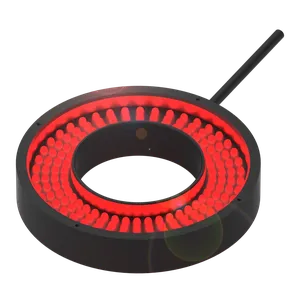

Ring lights

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BAE000J.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.432 KG / psc.
Commodity number	94054099
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	PG017
Connection	Cable with connector, M12x1-Male, 4-pin, 0.3 m
Version	Ring light
Rated operating voltage Ue DC	24 V
Current draw max	830 mA, 1370 mA (Boost mode)
Operating mode	Normal (continuous operation) Boost (continuous operation with cooling)
Digital inputs	Trigger
Material	Aluminium anodized, black Glass
Illumination area	Ø 100 mm/Ø 60 mm
Light type	LED, red light
Wave length	617 nm
Illuminence (01 m)	19000 Lux 32500 Lux (Boost mode)
Beam angle	30 °
Ambient temperature	-10...55 °C
Approval/Conformity	CE UKCA WEEE
IP rating	IP54
