BCS012T

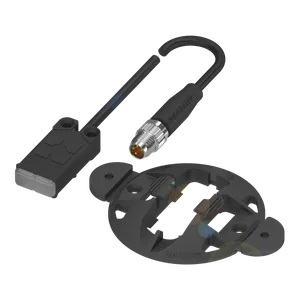

Product type: BCS R08RRE-PSM80C-EP00,3-GS75

Cubic version with teachable switching distance

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BCS012T.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.05 KG / psc.
Commodity number	85365019
Country of origin	DE
Dimensions (WxHxD)	8x16x34 mm
EAN code
Product group	PG003
Series	R08
Installation	for flush mounting
Connection	Cable with connector, 4-pin, 0.30 m, PUR
Switching output	PNP normally open (NO)
Switching frequency	50 Hz
Range	1...8 mm
Sensitivity	Switching distance teachable
Housing material	PP
Material sensing surface	PP
Ambient temperature	-25...70 °C
Operating voltage Ub	12...30 VDC
Approval/Conformity	cULus CE UKCA WEEE
IP rating	IP67
