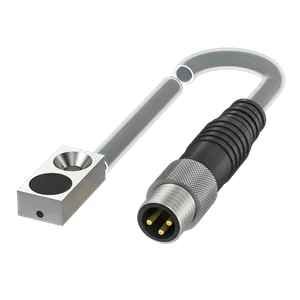

BES049E

Product type: BES R04MC-PSC20B-EP00,2-GS49-107

Cubic version

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BES049E.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	12.17 G / psc.
Commodity number	85365019
Country of origin	CN
Dimensions (WxHxD)	4.7x8x16 mm
EAN code
Product group	PG002
Style Housing	16x8x4.7
Installation	for flush mounting
Range	2 mm
Switching output	PNP normally open (NO)
Switching frequency	5000 Hz
Housing material	Brass, Nickel-free coated
Material sensing surface	Ceramic
Connection	Cable with connector, M8x1-Male, 3-pin, 0.20 m, Silicone
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP67
Approval/Conformity	CE UKCA cULus WEEE
