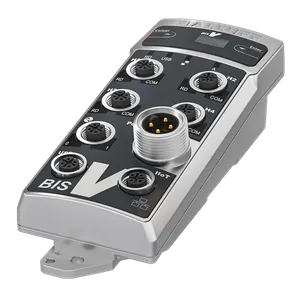

BIS01FT

Product type: BIS V-6113-03A-C006

Multifrequency evaluation units

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BIS01FT.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0 / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	PG031
Product group	Multi-Frequency Processor
Interface	Ethernet: MQTT/REST API USB
Supported RFID technologies	LF 125 kHz (BIS VL) HF 13.56 MHz (BIS VM) UHF 860...930 MHz (BIS VU)
Number of connectable R/W heads / antennas	4
Operating voltage Ub	24 V DC SELV/PELV
Housing material	Zinc, Die casting
Ambient temperature	0...60 °C
IP rating	IP65, with connector
Approval/Conformity	CE cULus WEEE UKCA
Connection	M12x1-Female, 4-pin, D-coded M12x1-Female, 5-pin, A-coded 7/8"-Male, 4-pin
