BNI0098

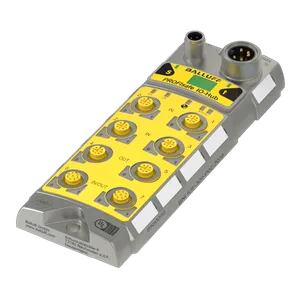

Product type: BNI IOF-329-P02-Z038

IO-Link sensor/actuator hubs for safety applications (Safe Line)

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BNI0098.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.661 KG / psc.
Commodity number	85176200
Country of origin	HU
Dimensions (WxHxD)	181.5x32.4x68 mm
EAN code
Product group	PG040
Performance Level	e
Safety category (EN ISO 13849-1)	4
SIL (IEC 61508)	3
Response time max	20 ms
Approval/Conformity	CE UKCA Safety cULus WEEE
Number of safe inputs	12
Number of safe outputs	2
Current sum US, sensor	4.8 A
Current sum UA, actuator	8 A
Digital inputs	14x PNP, Type 3
Digital outputs	2x PP/PM 2x PNP
Interface	PROFIsafe over IO-Link 1.1
Connection slots	2x M12x1-Female, 8-pin, A-coded 6x M12x1-Female, 5-pin, A-coded
Ambient temperature	-5...55 °C
IP rating	IP67
Housing material	Zinc, Die casting, nickel-plated
