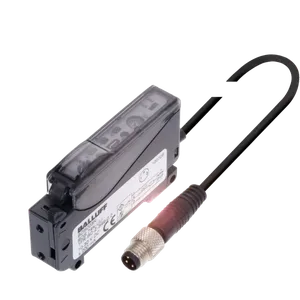

BOS003N

Product type: BOS 74K-UU-1FR-BO-Z-S49-00,2

Fiber-based devices for plastic and glass fibers

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BOS003N.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.079 KG / psc.
Commodity number	85365019
Country of origin	DE
Dimensions (WxHxD)	68.5x41x12 mm
EAN code
Product group
Series	74K
Interface	PNP/NPN normally open/normally closed (NO/NC)
Principle of operation	Fiber optic device
Setting	Time function Delay time Switching freq. 1000/666 Hz Switching output PNP/NPN Hysteresis Light-on/dark-on Sensitivity (Sn)
Operating voltage Ub	10...30 VDC
Light type	LED, red light
Connection	Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR
Housing material	PBT
Switching frequency	1000 Hz
Approval/Conformity	CE WEEE
