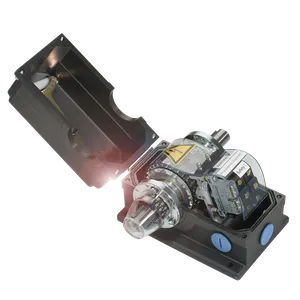

BSW003H

Product type: BSW 813-493-X64-09L3

Rotary cam switches with safety switch positions

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BSW003H.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	7.621 KG / psc.
Commodity number	85365080
Country of origin	HU
Dimensions (WxHxD)	187x140x245 mm
EAN code
Product group
Principle of operation	Rotary cam switch
Component	Mechanical rotary cam switch
Version	Safety EN 60204-1
Housing material	Aluminium, Anodized
Switching element	1-9. Switch position: BSE 61
Material contacts	1-9. Switch position: Silver
Cable entries, number	5 threaded exit M25
Cam rings	1-9. Switch position: 180°
Drive type	right
Speed max	200 1/min
Speed monitor	None
Rated operating voltage Ue	1-9. Switch position: 250 V AC
Continuous current	1-9. Switch position: 6 A
Ambient temperature	-5...80 °C
Approval/Conformity	CE DGUV WEEE
