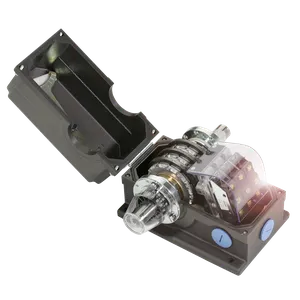

BSW00A8

Product type: BSW 819-494-X64-WF-12L3

Standard rotary cam switches

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-6 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on BSW00A8.
See all ZWOD Sales and Logistics Ltd Balluff products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0 / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	PG013
Principle of operation	Rotary cam switch
Component	Mechanical rotary cam switch
Version	Snap contact
Housing material	Aluminium, Anodized
Switching element	1. Switch position: BES 517-110 2-12. Switch position: BSE 67
Material contacts	2-12. Switch position: Fine silver
Cable entries, number	5 threaded exit M25
Cam rings	1. Switch position: WF 30 teeth 2-12. Switch position: 180°
Drive type	right
Speed max	200 1/min
Speed monitor	With loss of switch position
Rated operating voltage Ue	1. Switch position: 24 V DC 2-12. Switch position: 500 V AC
Continuous current	1. Switch position: 0.2 A 2-12. Switch position: 6 A
Ambient temperature	-5...80 °C
Approval/Conformity	CE UKCA CCC WEEE
