Pilz

265612

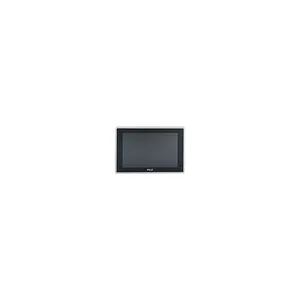

Product type: PMI 612 Control

Description

PMIcontrol - Control panel with 12.1" touchscreen, CODESYS Runtime and TargetVisu installed/licensed, Master systems: CANopen, ModbusTCP.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 265612.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.73 KG / psc.
Commodity number	85371091
Country of origin	DE
Dimensions (WxHxD)	332x222x83 mm
EAN code
Product group	7135
ram	512 MB
approval	CE cULus Listed EAC (Eurasian)
canopen type	Master
display type	TFT
etim version	ETIM-7.0
gross weight	5480 g
eclass version	ECLASS-9.1
plug-in memory	SD card
processor type	X86
humidity rating	90 % r. h. at 40 °C
display diagonal	12.1 Zoll
operating system	Windows Embedded Compact 7
reach compliance	contains min. 1 SVHC-substance
ul enclosure type	1,2,5,4/4X indoor use only
display resolution	1280 x 800
supply voltage (v)	24 V
ambient temperature	0 - 50 °C
emc to standard ...	EN 61000-6-2 EN 61000-6-4
type of touchscreen	capacitive
display colour depth	16.2 M
etim reference group	EG000024
power consumption dc	22.1 W
processor clock speed	1.3 GHz
acc. shock to standard1	15g
condensation permitted?	Not permitted
real-time clock present	Yes
eclass reference feature	27330201
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
canopen transmission times	800 kBit/s 500 kBit/s 10 kBit/s 250 kBit/s 100 kBit/s 1 MBit/s 125 kBit/s 20 kBit/s 50 kBit/s
ethernet transmission rate	1 Gbit/s
number of rs 232 interfaces	1
connector type ethernet int.	RJ45
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
number of canopen subscribers	127
number of ethernet interfaces	1
number of usb host interfaces	2
weee classifikation (08/2018)	2 device/monitor > 100 cm²
size of program memory (flash)	512 MB
