Pilz

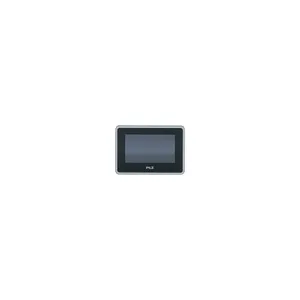

266704

Product type: PMI v704e

Datasheet

Description

PMIvisu, diagnostic and operating terminal, 4,3", resolution 480 x 272 pixel, capacitive touchscreen, TFT, RAM 512 MB, Flash 2 GB, 1 RJ45 port 100 MBit/s, 1 USB host 2.0, capacitor-buffered real-time clock, 24 V DC, 4W, economy version, OS Linux, PASvisu runtime installed and licensed, preinstalled software: Pilz visualisation software. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Operating and monitoring
Operator terminals
PMIvisu - Visualisation system
PMIvisu

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 266704.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.695 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	135x95x36.3 mm
EAN code
Product group	7134
ram	512 MB
approval	CE UKCA cULus Listed EAC (Eurasian)
display type	TFT
etim version	ETIM-7.0
gross weight	695 g
eclass version	ECLASS-9.1
humidity rating	90 % r. h. at 40 °C
display diagonal	4.3 Zoll
operating system	Linux
reach compliance	contains min. 1 SVHC-substance
ul enclosure type	1,2,5
display resolution	480 x 272
supply voltage (v)	24 V
ambient temperature	0 °C
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
type of touchscreen	capacitive
display colour depth	262144
etim reference group	EG000024
power consumption dc	2 W
processor clock speed	800 MHz
acc. shock to standard1	15g
condensation permitted?	Not permitted
real-time clock present	Yes
eclass reference feature	27330201
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ethernet transmission rate	100 MBit/s
type of usb host interface	USB 2.0 Type A
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
number of usb host interfaces	1
weee classifikation (08/2018)	2 device/monitor > 100 cm²
