Pilz

266707

Product type: PMI v707e

Datasheet

Description

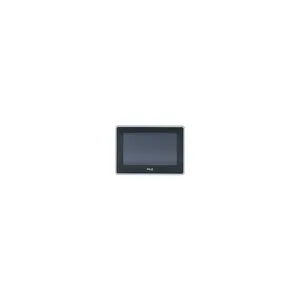

PMIvisu, diagnostic and operating terminal, 7", resolution 800 x 600pixel, capacitive touchscreen, TFT, RAM 512 MB, Flash 2 GB, 1 RJ45 port 100 MBit/s, 1 USB host 2.0, capacitor-buffered real-time clock, 24 V DC, 6W, economy version, OS Linux, PASvisu runtime installed and licensed, preinstalled software: Pilz visualisation software.

Operating and monitoring
Operator terminals
PMIvisu - Visualisation system
PMIvisu

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 266707.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.925 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	200x142x50.3 mm
EAN code
Product group	7134
ram	512 MB
approval	CE UKCA cULus Listed EAC (Eurasian)
display type	TFT
etim version	ETIM-7.0
gross weight	1155 g
eclass version	ECLASS-9.1
humidity rating	90 % r. h. at 40 °C
display diagonal	7 Zoll
operating system	Linux
reach compliance	contains min. 1 SVHC-substance
ul enclosure type	1,2,5
display resolution	800 x 480
supply voltage (v)	24 V
ambient temperature	0 °C
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
type of touchscreen	capacitive
display colour depth	262144
etim reference group	EG000024
power consumption dc	3 W
processor clock speed	800 MHz
acc. shock to standard1	15g
condensation permitted?	Not permitted
real-time clock present	Yes
eclass reference feature	27330201
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ethernet transmission rate	100 MBit/s
type of usb host interface	USB 2.0 Type A
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
number of usb host interfaces	1
weee classifikation (08/2018)	2 device/monitor > 100 cm²
