Pilz

266807

Product type: PMI v807

Datasheet

Description

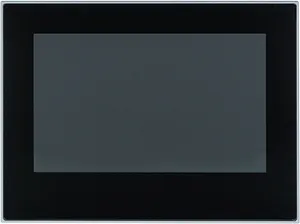

PMIvisu, diagnostic and operating terminal, 7", resolution 800 x 600pixel, capacitive touchscreen, TFT, RAM 4 GB, SSD 32 GB, 2 RJ45 port 1 Gbit/s, 1 USB host 3.0, 2 USB host 2.0, 1 HDMI port, 1 VGA port, capacitor-buffered real-time clock, 12 ... 30 V DC, 23 W, OS Windows 10 IOT, PASvisu Runtime installed and licensed, preinstalled software: PMI v8 Assistant, PASvisu Server and Client, PVIS OPC Server UA, PSS 4000 firmware (OPC Server UA).

Operating and monitoring
Operator terminals
PMIvisu - Visualisation system
PMIvisu

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 266807.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.389 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	143.8x193.8x54.3 mm
EAN code
Product group	7134
ram	4 GB
cas no.	7439-92-1 65997-18-4
approval	CE UKCA cULus Listed EAC (Eurasian)
display type	TFT
gross weight	1698 g
processor type	X86
rohs directive	2011/65/EU 2015/863/EU
humidity rating	0... 90% at 39°C(non-condens.)
rohs conformity	yes
rohs exceptions	yes
display diagonal	7 Zoll
operating system	Windows 10 IOT
reach compliance	contains min. 1 SVHC-substance
display resolution	800 x 480
supply voltage (v)	12 V
ambient temperature	0 °C
emc to standard ...	EN 61000-6-2 EN 55032 ed.2 Class B 2015
type of touchscreen	capacitive
display colour depth	16.7 M
power consumption dc	23 W
processor clock speed	2.0 GHz
external vga interface	1 x HDMI 1 x VGA
%-part of the pollutant	> 0,1
acc. shock to standard1	15g
condensation permitted?	Not permitted
real-time clock present	Yes
protection type standard	EN 60529
reach included substances	Lead
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ethernet transmission rate	1 Gbit/s
connector type ethernet int.	RJ45
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
number of ethernet interfaces	2
number of usb host interfaces	1 x USB 3.0 2 x USB 2.0
rohs except.s acc. to direct.	7a 6c 7c I
weee classifikation (08/2018)	2 device/monitor > 100 cm²
size of program memory (flash)	32 GB
