Pilz

266812

Product type: PMI v812

Datasheet

Description

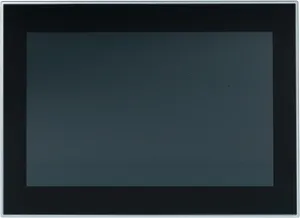

PMIvisu, diagnostic and operating terminal, 12.1", resolution 1280 x 800pixel ,capacitive touchscreen, TFT, RAM 4 GB, SSD 32 GB, 2 RJ45 port 1 Gbit/s, 1 USB host 3.0, 2 USB host 2.0, 1 HDMI port, 1 VGA port, capacitor-buffered real-time clock, 12 ... 30 V DC, 29.2 W, OS Windows10 IOT, PASvisu Runtime installed and licensed, preinstalled software: PMI v8 Assistant, PASvisu Server and Client, PVIS OPC Server UA, PSS 4000 firmware (OPC Server UA).

Operating and monitoring
Operator terminals
PMIvisu - Visualisation system
PMIvisu

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 266812.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.86 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	315.5x228x64.5 mm
EAN code
Product group	7134
ram	4 GB
cas no.	7439-92-1 1317-36-8 71898-10-5 80-05-7 541-02-5 65997-18-4 10043-35-1 540-97-6 556-67-2
approval	CE UKCA cULus Listed EAC (Eurasian)
display type	TFT
etim version	ETIM-7.0
gross weight	4757 g
eclass version	ECLASS-9.1
processor type	X86
rohs directive	2011/65/EU 2015/863/EU
humidity rating	0... 90% at 39°C(non-condens.)
rohs conformity	yes
rohs exceptions	yes
display diagonal	12.1 Zoll
operating system	Windows 10 IOT
reach compliance	contains min. 1 SVHC-substance
display resolution	1280 x 800
supply voltage (v)	12 V
ambient temperature	0 °C
emc to standard ...	EN 61000-6-2 EN 61000-6-4
type of touchscreen	capacitive
display colour depth	16.7 M
etim reference group	EG000024
power consumption dc	29.2 W
processor clock speed	2.0 GHz
external vga interface	1 x HDMI 1 x VGA
%-part of the pollutant	> 0,1
acc. shock to standard1	15g
condensation permitted?	Not permitted
real-time clock present	Yes
eclass reference feature	27330201
protection type standard	EN 60529
reach included substances	Lead Lead oxide Boric acid
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ethernet transmission rate	1 Gbit/s
connector type ethernet int.	RJ45
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
number of ethernet interfaces	2
number of usb host interfaces	1 x USB 3.0 2 x USB 2.0
rohs except.s acc. to direct.	6a 6c 7c I
weee classifikation (08/2018)	2 device/monitor > 100 cm²
size of program memory (flash)	32 GB
