Pilz

312041

Name: 312041
Brand: Pilz
Availability: PreOrder

Product type: PSSu H S PN

Description

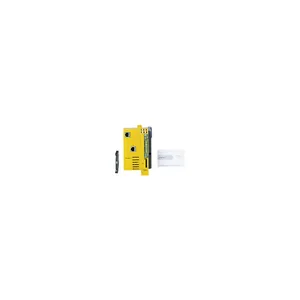

PSSu, head module, control system PSSu I/O, standard, 2 RJ45 ports, PROFINET IO DEVICE, PROFIenergy, IRT/RT, MRP, shared device.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 312041.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.17 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	75.2x128.4x79.4 mm
EAN code
Product group	7023
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	230
profinet type	Slave
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
profinet certification	PNO
acc. shock to standard1	15g
acc. shock to standard2	25g
condensation permitted?	Not permitted
eclass reference feature	27242608
profinet manufacturer id	092Fh
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
connector type profinet i/f	RJ45
housing material front plate	PC
settable trans.rate profinet	100 MBit/s
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
