Pilz

312085

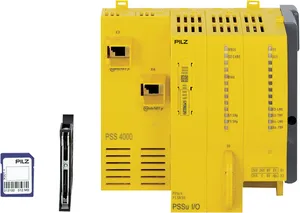

Product type: PSSu H FS SN SD

Datasheet

Description

PSSu, head module, decentralised system PSSuniversal I/O, failsafe and standard, PL e, SIL CL 3, 2 RJ45 Ports, SafetyNET p RTFN, SD card.

Controller
I/O systems
PSSuniversal - communications modules
PSSuniversal - PSS 4000 head modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 312085.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.365 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	130x125.6x83.7 mm
EAN code
Product group	7023
ram	128 MB
cas no.	7439-92-1 1317-36-8
approval	CE UKCA cULus Listed KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	405
purpose of u1	Module supply
purpose of u2	Periphery supply
type of uint1	DC
eclass version	ECLASS-9.1
plug-in memory	SD card
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
time deviation	+/- 10s/day
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
tolerance of u2	-30 %/+25 %
purpose of uint1	int. system voltage
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
multi programming	No
supply voltage (v)	24 24
tolerance of uint1	-2 %/+3 %
ambient temperature	0 60
connection terminal	Spring-loaded terminal Screw terminal
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	II
power consumption dc	16
supply voltage 2 (v)	24 24
iec 61131 programming	No
non-volatile variables	No
safetynet p cycle time	2 ... 60 000 ms
%-part of the pollutant	> 0,1%
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242207
flex. cond. c/s awg info	24 - 12 AWG
reach included substances	Lead Lead oxide
type of supply voltage u1	DC
type of supply voltage u2	DC
uint1 short circuit proof	Yes
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
safetynet transmission rate	100 MBit/s
connector type safetynet i/f	RJ45
setting safetynet trans.rate	Automatic
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	Periphery and module supply
potential isolation 2 between	Periphery supply & system V.
rohs except.s acc. to direct.	6c 7c I
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
bridge u-interrupt uint1 stan.	EN 61131-2 EN 61496-1
housing material lower section	PC
max. curr. contin. oper. uint1	2
pollution degree clear.&creep.	2
