Pilz

312191

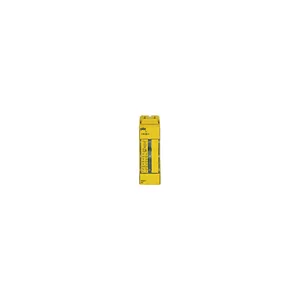

Product type: PSSu E F PS1

Datasheet

Description

PSSu, electronic module, failsafe, supply voltage, infeed module supply 24 V DC 10 A, infeed periphery supply 24 V DC 10 A, infeed C-rail 10 A.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - power supply modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 312191.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.057 KG / psc.
Commodity number	85044090
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	66
purpose of u1	Module Supply
purpose of u2	Periphery Supply
eclass version	ECLASS-9.1
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
tolerance of u2	-30 %/+25 %
purpose of uint1	int. Systemspannung
application range	Standard/Fail-safe
supply voltage (v)	24
tolerance of uint1	-2 %/+3 %
ambient temperature	0
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
power consumption dc	12
supply voltage 2 (v)	24
housing material code	PA
name of coding element	C
acc. shock to standard1	15g
acc. shock to standard2	10g
condensation permitted?	unzulässig
colour of coding element	gelb
eclass reference feature	27242611
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
protection type, mounting	IP54
type of supply voltage u1	DC
type of supply voltage u2	DC
uint1 short circuit proof	ja
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
pot. isolation uint1 to u2	3050 V
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
housing material front plate	PC
potential isolation u1 to u2	3050 V
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
bridge u-interrupt uint1 stan.	EN61496-1 EN61131-2 DIN V EN V 1954
housing material lower section	PC
max. curr. contin. oper. uint1	2
pollution degree clear.&creep.	2
