Pilz

312225

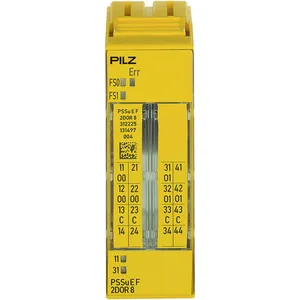

Product type: PSSu E F 2DOR 8

Datasheet

Description

PSSu, electronic module, failsafe, digital inputs and outputs, 2outputs, relay contacts, 8 A, N/O, potential-free.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 312225.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.09 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
cas no.	1317-36-8
approval	CE UKCA cULus Listed KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	99
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
permitted loads	ohmsch induktiv
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
ambient temperature	0
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	III
ambient temp. with ul	60 °C
housing material code	PA
name of coding element	H
pot.isol. rlcont to u2	4900 V (sich. Trennung)
relay contact material	AgCuNi
%-part of the pollutant	> 0,1%
acc. shock to standard1	15g
acc. shock to standard2	10g
condensation permitted?	unzulässig
number of relay outputs	2
colour of coding element	gelb
eclass reference feature	27242604
pot.isol. rlcont - uint1	4900 V (sich. Trennung)
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
voltage ac1 safety cont.	250
voltage dc1 safety cont.	24
protection type, mounting	IP54
reach included substances	Lead oxide
safety contacts: ac at ul	250 V AC G.U. (same polarity)
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230
voltage dc13 safety cont.	24
perm. operating height asl	2000 m
pot.isol. rlcont1 to crail	3050 V (Basisisolierung)
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0,2 µm Au
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot.isol. rlcont1 to rlcont2	4900 V (sich. Trennung)
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
max. current ac1 safety cont.	8
max. current dc1 safety cont.	8
rohs except.s acc. to direct.	7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	3
pollution degree clear.&creep.	2
typ. process time relay o/p on	20 - 60 ms
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
