Pilz

312260

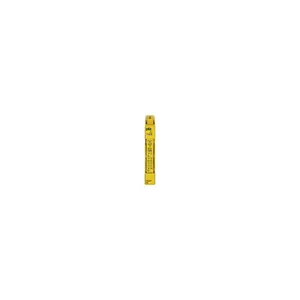

Product type: PSSu E F AI I

Datasheet

Description

PSSu, electronic module, failsafe, analogue inputs and outputs, 1 input,0 - 25.59 mA, dual-pole, differential input, resolution 12 Bit.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 312260.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.036 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	12.6x76x60.2 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	45
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
application range	Fail-safe
ambient temperature	0
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
type of input filter	RC-Filter
housing material code	PA
name of coding element	K
acc. shock to standard1	15g
condensation permitted?	unzulässig
type of analogue inputs	Strom
colour of coding element	gelb
eclass reference feature	27242601
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
number of analogue inputs	1
protection type, mounting	IP54
signal range analog input	0 .. 25,59375 mA
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
potential isolation inputs	ja
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
pot. isolation analog inp./	ja
ambient temperature standard	EN 60068-2-14
conversion method analog i/p	sukzessive Approximation
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
resolution of analogue inputs	12
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
