Pilz

312420

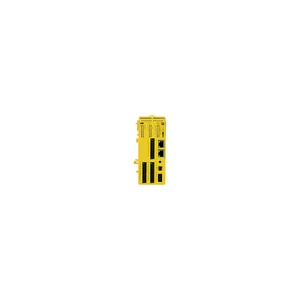

Product type: PSSu K F FAU B

Datasheet

Description

PSSu, compact module, failsafe, special module, analysis unit for PSENvip, basic version, 1 interface PSENvip receiver, 1 interface PSENvip transmitter, 4 inputs, 2 test pulse outputs 0.25 A, 2 outputs, 1.75 A, single-pole, plus-switching, short circuit-proof, overload- proof, free from feedback, 2 outputs, 3 A, dual-pole, short circuit- proof, overload-proof, high discharge voltage, free from feedback, 2 Ethernet interfaces, 100 MBit/s. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 312420.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.21 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	56x128.9x56 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	210
purpose of u1	Module Supply
purpose of u2	Periphery Supply
purpose of u3	Ausgänge
eclass version	ECLASS-9.1
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
tolerance of u2	-30 %/+25 %
tolerance of u3	-30 %/+25 %
number of inputs	4
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
mounting position	vertikal
supply voltage (v)	5
ambient temperature	0
connection terminal	Stiftleiste
dc voltage at input	24 V DC
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
power consumption dc	5
supply voltage 2 (v)	24
acc. shock to standard1	15g
condensation permitted?	unzulässig
number 2-pin sc outputs	2
perm. load 1pole output	ohmsch induktiv kapazitiv
eclass reference feature	27242604
number of digital inputs	4
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
potential isolation s/c o	ja
protection type, mounting	IP54
type of supply voltage u1	DC
type of supply voltage u2	DC
type of supply voltage u3	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
pot. isolation 2pole s/c o	ja
potential isolation inputs	ja
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
number of test pulse outputs	2
storage temperature standard	EN 60068-2-1/-2
2pole s/c o short circ. proof	ja
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
s/c output short circuit proof	ja
