Pilz

314225

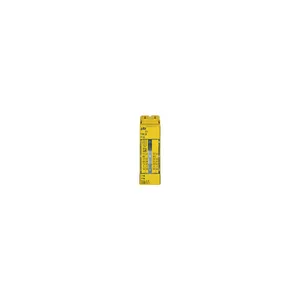

Product type: PSSu E F 2DOR 8-T

Datasheet

Description

PSSu, electronic module, failsafe, digital inputs and outputs, 2outputs, relay contacts, 8 A, N/O, potential-free, for increased environmental requirements.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 314225.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.091 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	100
eclass version	ECLASS-9.1
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
permitted loads	ohmsch induktiv
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
ambient temperature	-40
broad band noise to	EN 60068-2-64
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	III
ambient temp. with ul	60 °C
housing material code	PA
name of coding element	H
pot.isol. rlcont to u2	4900 V (sich. Trennung)
relay contact material	AgCuNi
acc. shock to standard1	15g
acc. shock to standard2	10g
condensation permitted?	bei Schutzkleinsp.: kurzzeitig
number of relay outputs	2
colour of coding element	gelb
eclass reference feature	27242604
pot.isol. rlcont - uint1	4900 V (sich. Trennung)
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
voltage ac1 safety cont.	250
voltage dc1 safety cont.	24
protection type, mounting	IP54
safety contacts: ac at ul	250 V AC G.U. (same polarity)
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230
voltage dc13 safety cont.	24
perm. operating height asl	2000 m
pot.isol. rlcont1 to crail	3050 V (Basisisolierung)
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0,2 µm Au
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot.isol. rlcont1 to rlcont2	4900 V (sich. Trennung)
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
max. current ac1 safety cont.	8
max. current dc1 safety cont.	8
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	3
pollution degree clear.&creep.	2
typ. process time relay o/p on	20 - 60 ms
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
