Pilz

314515

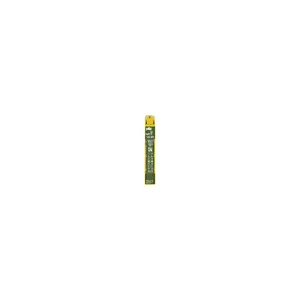

Product type: PSSu E S RS232-T

Datasheet

Description

PSSu, electronic module, standard, serial interface, RS232, 1 input, 2 communication channels, 64 Bit, full duplex mode, 7 transmission rates, configurable, 0.6 - 19.2 kBit/s, hardware handshake CTS/RTS, potential isolation, cable length 15 m, for increased environmental requirements.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 314515.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.037 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	12.6x76x60.2 mm
EAN code
Product group	7017
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	52
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	-40 70
emc to standard ...	EN 61131-2 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
housing material code	PA
name of coding element	K
acc. shock to standard1	15g
acc. shock to standard2	25g
condensation permitted?	Briefly
colour of coding element	Dark grey
eclass reference feature	27242605
protection type standard	EN 60529
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
number of rs 232 interfaces	1
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
