Pilz

314516

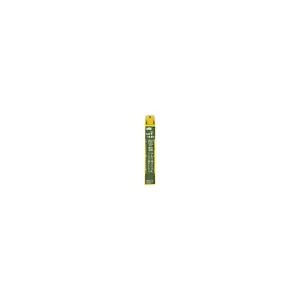

Product type: PSSu E S RS485-T

Datasheet

Description

PSSu, electronic module, standard, serial interface, RS485/422, 1 input, 2 communication channels, 64 Bit, full duplex and half duplexmode, 7 transmission rates, configurable, 0.6 - 19.2 kBit/s, potentialisolation, cable length 1,000 m, for increased environmental requirements.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 314516.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.036 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	12.6x76x60.2 mm
EAN code
Product group	7017
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	44
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	-40 70
emc to standard ...	EN 61131-2 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
housing material code	PA
name of coding element	L
acc. shock to standard1	15g
condensation permitted?	Briefly
colour of coding element	Dark grey
eclass reference feature	27242605
protection type standard	EN 60529
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
number of rs 485 interfaces	1
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
