315071
Pilz

315071

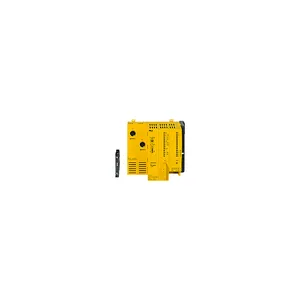

Product type: PSSu H PLC1 FS SN SD M12-R

Description

PSSu, head module, control system PSSu PLC, failsafe and standard, PL e, SIL CL 3, 2 M12 female connector 4-pin D-coded, SafetyNET p RTFN, Modbus/TCP, Raw UDP, Raw TCP, EtherNet/IP adapter, PROFINET IO DEVICE, SD card, M12 female connector, for railway applications. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.
Read More
  • Controller
  • PLC controllers
  • PSSuniversal - controllers
  • PSSuniversal - PLC Controller
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.42 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)130x125.6x83.7 mm
EAN code
Product group7014
ram 128 MB
approval CE cULus Listed TÜV
etim version ETIM-7.0
gross weight 420
profinet type Slave
purpose of u1 Module supply
purpose of u2 Periphery supply
type of uint1 DC
eclass version ECLASS-9.1
plug-in memory SD card
terminal style plug-in
time deviation +/- 10s/day
tolerance of u2 -30 %/+25 %
purpose of uint1 int. system voltage
reach compliance contains min. 1 SVHC-substance
application range Standard/failsafe
modbus cycle time 2 ... 2 000 000 ms
multi programming Yes
user memory total 4 MB
raw udp cycle time 2 ... 2 000 000 ms
supply voltage (v) 24 24
tolerance of uint1 -2 %/+3 %
ambient temperature -40 70
broad band noise to EN 50125-3
connection terminal Screw terminal Spring-loaded terminal
emc to standard ... EN 50121-4 EN 50121-3-2
eds file ethernet/ip 00B5000C00010100.eds
etim reference group EG000024
overvoltage category OV2
power consumption dc 16
supply voltage 2 (v) 24 24
iec 61131 programming Yes
cycle time ethernet/ip 4...655 000 ms
non-volatile variables Yes
profinet certification PNO
safetynet p cycle time 2 ... 60 000 ms
condensation permitted? ISO 16750-4
device type ethernet/ip Adapter
eclass reference feature 27242208
flex. cond. c/s awg info 24 - 12 AWG
profinet manufacturer id 092Fh
protection type standard EN 60529
nv user memory fs section 382 kB
supported ethernet/ip rpi 4...655 000 ms
type of supply voltage u1 DC
type of supply voltage u2 DC
uint1 short circuit proof Yes
perm. operating height asl 2000 m
ambient temp. to standard 2 -40 ... +70 °C
ambient temp. to standard 3 -40 ... +70 °C
app. site standard1 railway EN 50125-3
app. site standard2 railway EN 61373
climatic suitability to ... EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 50155 EN 60068-2-14
connector type profinet i/f M12
freq. broadband noise, rail 5 ... 150 Hz
safetynet transmission rate 100 MBit/s
accel. broadband noise, rail 0.572 g RMS
acceleration broadband noise 0.23 g RMS
ambient temperature standard EN 50155
connector type safetynet i/f M12
settable trans.rate profinet 100 MBit/s
setting safetynet trans.rate Automatic
standard 2 for ambient temp. EN 50125-1
standard 3 for ambient temp. EN 50125-3
standard1 b/band noise, rail EN 61373
trans. rate setting profinet Automatic
clearance & creepage dist. to EN 50124-1
cycle time profinet io device 4 ... 512 ms
potential isolation 1 between Periphery and module supply
potential isolation 2 between Periphery supply & system V.
type of potential isolation 1 Functional insulation
type of potential isolation 2 Functional insulation
weee classifikation (08/2018) 5 devices (feed size < 50cm)
app. site to standard1 railway Track area (1m - 3m)
app. site to standard2 railway Category 1, Class A + B
housing material lower section PC
max. curr. contin. oper. uint1 2
pollution degree clear.&creep. PD2
