Pilz

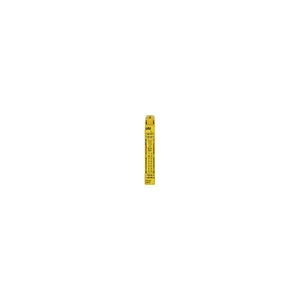

315210

Product type: PSSu E F 4DO 0.5-R

Datasheet

Description

PSSu, electronic module, failsafe, digital inputs and outputs, 4 outputs, 0.5 A, single-pole, positive-switching, short-circuit proof, overload-proof, free from feedback, for railway applications. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 315210.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.046 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	12.6x76x60.2 mm
EAN code
Product group	7017
approval	CE UKCA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	46
eclass version	ECLASS-9.1
terminal style	steckbar
permitted loads	ohmsch induktiv kapazitiv
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
ambient temperature	-40
broad band noise to	EN 61373
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	OV2
housing material code	PA
name of coding element	E
acc. shock to standard1	2g
acc. shock to standard2	5g
colour of coding element	gelb
eclass reference feature	27242604
protection type standard	EN 60529
protection type, housing	IP20
potential isolation s/c o	ja
protection type, mounting	IP51
terminal v ind. loads off	U2 - 50 V
vibration to standard ...	EN 50125-3
perm. operating height asl	2000 m
ambient temp. to standard 2	-40 ... +70 °C
ambient temp. to standard 3	-40 ... +70 °C
app. site standard1 railway	EN 50125-3
app. site standard2 railway	EN 61373
climatic suitability to ...	EN 50125-1 EN 60068-2-2 EN 60068-2-1 EN 50155 EN 60068-2-14 EN 50125-3
freq. broadband noise, rail	5 ... 150 Hz
accel. broadband noise, rail	0,79 g RMS
ambient temperature standard	EN 50155
housing material front plate	PC
standard 2 for ambient temp.	EN 50125-1
standard 3 for ambient temp.	EN 50125-3
standard1 b/band noise, rail	EN 61373
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 50124-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
app. site to standard1 railway	Gleisbereich (1m - 3m)
app. site to standard2 railway	Kategorie 1, Klasse A + B
housing material lower section	PC
pollution degree clear.&creep.	PD2
s/c output short circuit proof	ja
