Pilz

316020

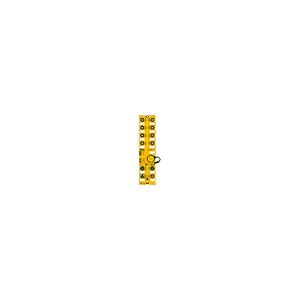

Product type: PSS67 PLC1 16FDI

Datasheet

Description

PSSu, device, protection type IP67, control system PSSu PLC, failsafe,PL e, SIL CL 3, 2 M12 ports, SafetyNET p RTFN, Modbus/TCP, Raw UDP, Raw TCP, EtherNet/IP adapter, PROFINET IO DEVICE, digital inputs and outputs, 16 inputs, 16 test pulse outputs with 24 V DC 0.25 A, short circuit proof,SD card.

Controller
PLC controllers
PSS67 Controller
PSS67 PLC

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 316020.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.94 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	61.5x260x52 mm
EAN code
Product group	7155
ram	128MB
approval	CE cULus Listed TÜV
etim version	ETIM-7.0
gross weight	1230
profinet type	Slave
purpose of u1	Device supply
purpose of u2	Load supply
eclass version	ECLASS-9.1
plug-in memory	µSD card
terminal style	screw interlocked
time deviation	+/- 10s/day
tolerance of u2	-30 %/+25 %
application range	Standard/failsafe
modbus cycle time	2...2 000 000 ms
multi programming	Yes
user memory total	4 MB
raw udp cycle time	2 ... 2 000 000 ms
supply voltage (v)	24 24
ambient temperature	-30 70
connection terminal	M12
dc voltage at input	24 V DC
emc to standard ...	EN 61131-2 (Zone B)
overvoltage category	II
power consumption dc	4.9
supply voltage 2 (v)	24 24
iec 61131 programming	Yes
cycle time ethernet/ip	4...655 000 ms
non-volatile variables	Yes
profinet certification	PNO
safetynet p cycle time	2 ... 60 000 ms
acc. shock to standard1	150 m/s²
condensation permitted?	Permitted
device type ethernet/ip	Adapter
eclass reference feature	27242290
number of digital inputs	16 16
profinet manufacturer id	092Fh
protection type standard	EN 60529
nv user memory fs section	382 kB
supported ethernet/ip rpi	4...655 000 ms
type of supply voltage u1	DC
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
potential isolation inputs	No
climatic suitability to ...	EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
connector type profinet i/f	M12
safetynet transmission rate	100 MBit/s
ambient temperature standard	EN 60068-2-14
connector type safetynet i/f	M12
number of test pulse outputs	16
settable trans.rate profinet	100 MBit/s
setting safetynet trans.rate	Automatic
storage temperature standard	EN 60068-2-1/-2
trans. rate setting profinet	Automatic
clearance & creepage dist. to	EN 61131-2
cycle time profinet io device	4 ... 512 ms
potential isolation 1 between	Load supply and device supply
potential isolation 2 between	SafetyNET p and device supply
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
