Pilz

328072

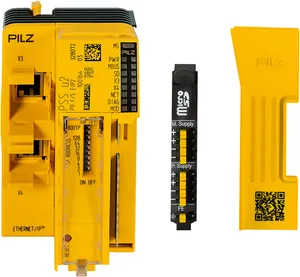

Product type: PSS u2 P0 F/S EIP2

Datasheet

Description

PSS u2, head module, performance index P0, control system I/O, failsafeand standard, 2 RJ45 ports, EtherNet/IP adapter with CIP Safety, supports BOOTP, integral power supply, infeed module supply 24 V DC 1.2 A, infeed periphery supply 24 V DC 8 A, potential isolation, connection functional earth, for microSD card integrated in the terminal block, with protective plate.

Controller
I/O systems
PSSuniversal 2 - Communication modules
PSSuniversal 2 - safe communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 328072.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.23 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	64.1x110.1x94.7 mm
EAN code
Product group	7102
approval	CE cULus Listed TÜV
gross weight	235
purpose of u1	Module supply
purpose of u2	Periphery supply
plug-in memory	µSD card
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
tolerance of u2	-30 %/+25 %
application range	Standard/failsafe
supply voltage (v)	24 24
ambient temperature	0 60
connection terminal	Spring-loaded terminal
emc to standard ...	EN 61131-2 (Zone B)
overvoltage category	II
power consumption dc	28.8
supply voltage 2 (v)	24 24
potential isolation u1	Yes
potential isolation u2	Yes
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
device type ethernet/ip	Adapter
supported cipsafety rpi	10 … 3200 ms
trans. rate ethernet/ip	100 MBit/s
ethernet/ip certification	ODVA
supported ethernet/ip rpi	1 ... 3200 ms
type of supply voltage u1	DC
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2 UL/IEC 61010-2-201
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	UB and periphery supply
potential isolation 2 between	UB and module supply
potential isolation 3 between	Periphery and module supply
potential isolation 4 between	Module supply and EtherNet/IP
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
type of potential isolation 3	Functional insulation
type of potential isolation 4	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPE
pollution degree clear.&creep.	2
