Pilz

328085

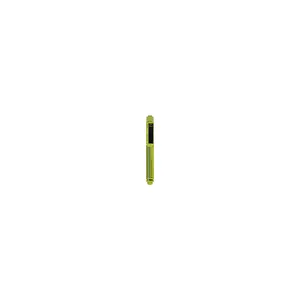

Product type: PSS u2 ES 16PTD 24V

Datasheet

Description

PSS u2, electronic module, standard, voltage distribution, 16 outputs, connection periphery supply 24 V DC 0.5 A, short circuit-proof potential isolation, expanded diagnostics, 1-row, terminal block PSS u2T 16 required (not supplied with the system).

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Patch terminals

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 328085.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.039 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	55
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive Capacitive
housing material	PC
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
dc voltage at output 2	24 V DC
overvoltage category 2	III
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
eclass reference feature	27242610
protection type standard	EN 60529
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	Periphery and module supply
potential isolation u2 output	Yes
type of potential isolation 1	Functional insulation
u2 output short-circuit proof	Yes
weee classifikation (08/2018)	5 devices (feed size < 50cm)
clearance & creepage dist.to 2	EN 60664-1
pollution degree clear.&creep.	2
