Pilz

328091

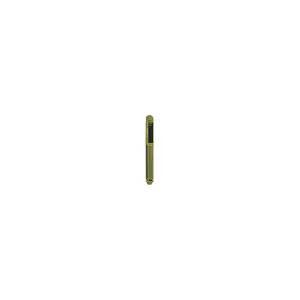

Product type: PSS u2 ES 16PT FE

Datasheet

Description

PSS u2, electronic module, standard, voltage distribution, 16 outputs, connection functional earth, 1-row, terminal block PSS u2 T 16 required (not supplied with the system).

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Patch terminals

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 328091.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.029 KG / psc.
Commodity number	85369095
Country of origin	DE
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	38
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
housing material	PC
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
eclass reference feature	27242610
protection type standard	EN 60529
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2 UL/IEC 61010-2-201
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
