Pilz

328308

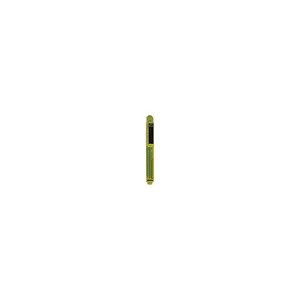

Product type: PSS u2 ES 6DI 120V AC

Datasheet

Description

PSS u2, electronic module, standard, 6 inputs, type 3 to IEC 61131-2, 120 V AC, protective coding PSS u2 CE T available for terminal block, 1- row, terminal block PSS u2 T 8 required (not supplied with the system). Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 328308.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.052 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	52
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
housing material	PC
number of inputs	6
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
software filter time	5 ms ... 25.5 ms
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
eclass reference feature	27242604
protection type standard	EN 60529
type of input voltage u1	AC
potential isolation input	Yes
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
signal level at input at 0	0 - 20 VAC
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	Input and module supply
potential isolation 2 between	Periphery and module supply
potential isolation 3 between	Input and periphery supply
standard for input voltage u1	EN 61131-2 Type 1 EN 61131-2 Type 3
type of potential isolation 1	Reinforced insulation
type of potential isolation 2	Functional insulation
type of potential isolation 3	Reinforced insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
