Pilz

328770

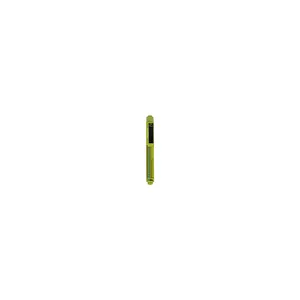

Product type: PSS u2 ES 4IOL

Datasheet

Description

PSS u2, electronic module, standard, communication, 4 IO-Link master, 3 modes, IO-Link modules, revision v1.1, cable length 20 m, actuator/sensor supply 1 A, short circuit-proof, function Class A Port integrated, function Class B Port with additional voltage distribution module, communication speeds COM1/COM2/COM3, input process data (per port/module) 32/128 Byte, output process data (per port/module) 32/128 Byte, DI- mode with input current 2.5/5.5 mA,DO mode with output current 0.2 A, short circuit-proof, saving the device configuration in the master, energy-saving functions, 1-row, terminalblock PSS u2 T 16 required (not supplied with the system).

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 328770.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.035 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE UKCA
etim version	ETIM-7.0
gross weight	52
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
housing material	PC
io-link revision	1.1
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
l+ short circuit proof	Yes
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
eclass reference feature	27242604
input current in di mode	2.5 mA/5.5mA (switchable)
protection type standard	EN 60529
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
pot. isol. bw. port & port	No
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
iol port communication speed	COM1/COM2/COM3
iol port of classb possible?	Yes, via additional module
pot. isol. bw. modsup & port	Yes
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
iol port of classa available?	Yes
weee classifikation (08/2018)	5 devices (feed size < 50cm)
o in do mode short circ. proof	Yes
pollution degree clear.&creep.	2
