Pilz

328811

Name: 328811
Brand: Pilz
Availability: PreOrder

Product type: PSS u2 B 1

Description

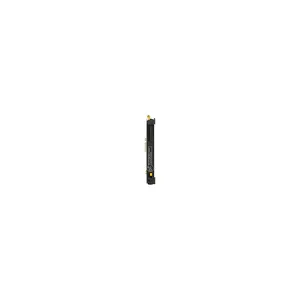

PSS u2, accessories, module carrier, for electronic modules, 1 slot,width 12.6 mm, height 107 mm, note the mounting distances.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 328811.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.024 KG / psc.
Commodity number	85381000
Country of origin	DE
Dimensions (WxHxD)	16.4x107x32.9 mm
EAN code
Product group	7088
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	25
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
housing material	PPE
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
eclass reference feature	27242603
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
