Pilz

380000

Name: 380000
Brand: Pilz
Availability: PreOrder

Product type: SafetyNET p Cable

Description

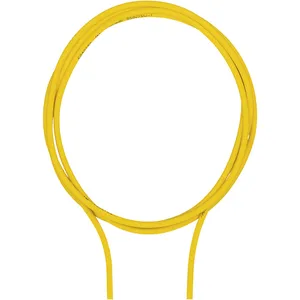

By the metre, Cat5e (100mBit/s), PUR, yellow RAL1003, 2x2x0.35, colour single wires: White, yellow, blue, orange

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 380000.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.07 KG / psc.
Commodity number	85444995
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA cURus
etim version	ETIM-7.0
gross weight	70 g
halogen-free	yes
shielding k1	yes
stranding k1	Star quad
rated current	0.5 A
eclass version	ECLASS-9.1
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	no
flame resistance	IEC 60332-1-2 CSA FT-1 UL 1581
reach compliance	Contains no SVHC substances
cable material k1	Cu
ambient temperature	-40 - 70 °C
category of cable k1	Cat5e
number of conductors	4
type of shielding k1	Wire mesh
approvals for cable k1	CSA AWM I/II A/B UL AWM-Style 20236
conductor cross section	0.35 mm²
eclass reference feature	27060307
type of rated voltage u1	DC
colour cable insulation 1	Signal yellow RAL1003
cable cross section awg k1	22
material shield surface k1	Sn
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PE
typ. characteristic imped. k1	100 Ohm
weee classifikation (08/2018)	0 not relevant
insulation resistance cable k1	500 MOhm x km
material of cable insulation 1	PUR
max. outside diameter cable k1	6.9 mm
trailing capability of cable 1	no
