Pilz

380326

Product type: PSEN op4F/H Receiver adapter

Datasheet

Description

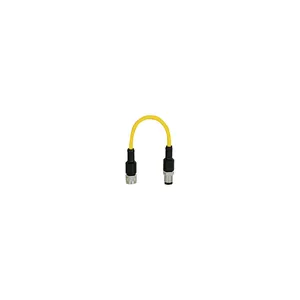

Cable, adapter, IP68, M12 female connector, black, straight, 8-pin, A- coded on M12 male connector, black, angled, 5-pin, A-coded, PUR, 0.1 m, 5× 0.25 mm², yellow, to connect a receiver of the base versions of the sensors PSEN op4F&/1 and PSEN op4H&/1 (lightcurtain) to PSS67 and PDP67.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Adapter

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 380326.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.026 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
cas no.	7439-92-1
approval	CE UKCA
etim version	ETIM-7.0
gross weight	41 g
halogen-free	yes
length cable	0.1 m
shielding k1	no
stranding k1	4 cores
cable type k1	LiF9Y11Y
rated current	2 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	8-pin M12 female connector
connector type 2	5-pin M12 male connector
flame resistance	UL VW1
housing material	PUR
material of pins	CuZn
reach compliance	contains min. 1 SVHC-substance
cable material k1	Cu
ambient temperature	-25 - 85 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	4
approvals for cable k1	UL AWM-Style 20233 UL/CSA
%-part of the pollutant	> 0,1
conductor cross section	0.25 mm²
eclass reference feature	27060313
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Yellow, similar to RAL 1003
reach included substances	Lead
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	24
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	79 Ohm/km
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U PUR
max. outside diameter cable k1	4.95 mm
pollution degree clear.&creep.	3
specific contact resistance k1	>= 7E+15 Ohm*cm
trailing capability of cable 1	no
