401112

Name: 401112
Brand: Pilz
Availability: PreOrder

Product type: PIT en1.1a-5m-s

Description

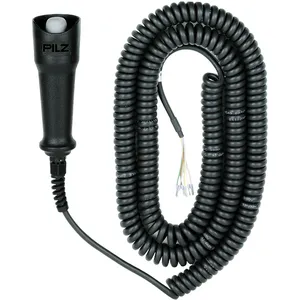

Enabling switch, 3 levels, 1 signal contact, 6-core coiled cable (5 m)with open end.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 401112.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.47 KG / psc.
Commodity number	85371098
Country of origin	DE
Dimensions (WxHxD)	45x125x45 mm
EAN code
Product group	7083
approval	CE
diameter	45
etim version	ETIM-7.0
gross weight	493
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	no
connection type	5 m coiled cable
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
mounting position	any
ambient temperature	0 50
etim reference group	EG000026
eclass reference feature	27371238
voltage ac15 safety cont.	125
voltage dc13 safety cont.	30
max.current dc12 safety cont.	1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PP
material of cable insulation 1	PUR
max. current ac15 safety cont.	0.3
utilisation cat. ac15/dc13sta.	EN 60947-5-1
