Pilz

402240

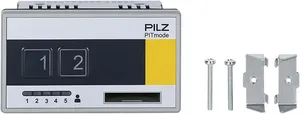

Product type: PIT m3.3p

Datasheet

Description

PITmode electronic selector switch for installing the control stationand to safe installing of 3 operating modes via a non-contact key and key selection. 4 operating modes OM1 and OM2 and a special mode OM5. Authorisation display via LEDs, Key ID interface for transferring the Key ID number of the transponder key. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Operating and monitoring
Control and signal devices
PITmode - operating mode & access
PITmode

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 402240.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.26 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	98x55x43 mm
EAN code
Product group	7075
cas no.	7439-92-1 1317-36-8
approval	CE cULus Listed FCC IC TÜV
etim version	ETIM-7.0
gross weight	260
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	95 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
number of inputs	3
reach compliance	contains min. 1 SVHC-substance
sensor principle	Transponder
max. cable length	1000
mounting position	any
supply voltage (v)	24 24
transponder coding	0x1111 (PILZ)
ambient temperature	-20 60
connection terminal	Screw terminal plug-in Spring-loaded terminal, plugin
dc voltage at input	24 V DC
emc to standard ...	EN 60947-5-1
operating frequency	125 kHz
etim reference group	EG000017
overvoltage category	II
galv. isolation input	No
%-part of the pollutant	> 0,1%
time button om1 service	5 s ... 10 s
time buttons om1 .. om4	50 ms ... 5 s
eclass reference feature	27371243
flex. cond. c/s awg info	28 - 16 AWG
reach included substances	Lead Lead oxide
transponder energy supply	Passive (battery-free)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
signal level at input at 0	-3 - +5 VDC
climatic suitability to ...	DIN IEC 60068-2-3
housing material front plate	ABS
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
galv. isolation of s/c outputs	No
housing material lower section	ST + 10µ Zn
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
