Pilz

402256

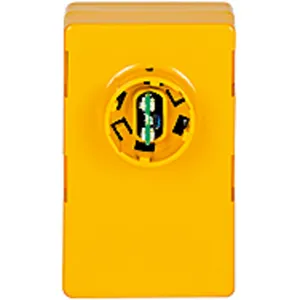

Product type: PITreader S base unit

Datasheet

Description

PITreader S base unit. RFID authentication system with enhanced function range. Contents: Base unit, connector [402307]. Required accessories: PITreader key adapter.

Operating and monitoring
Control and signal devices
PITmode - operating mode & access
PITmode

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 402256.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.047 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	72x54x45 mm
EAN code
Product group	7075
approval	CE UKCA cULus Listed FCC IC
gross weight	105
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
sensor principle	Transponder
mounting position	beliebig
supply voltage (v)	24
ambient temperature	-30
connection terminal	Federkraftklemme steckbar
emc to standard ...	EN 301489-1 V2.1.1
operating frequency	13,24 - 13,88 MHz
power consumption dc	4
galv. isolation input	nein
acc. shock to standard1	15g
protection type standard	EN 60529
protection type, housing	IP20
device circuit breaker u1	4 A, Autom 24 V DC, Char.B/C
protection type, mounting	≥ IP54
transponder energy supply	passiv (batterielos)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ethernet transmission rate	10/100 Mbit/s
perm. operating height asl	2000 m
number of semicond. outputs	1
type of power supply for u1	SELV/PELV
ambient temperature standard	EN 60068-2-14
connector type ethernet int.	RJ45
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
ethernet ip addr. factory set	192.168.0.12
number of ethernet interfaces	1
weee classifikation (08/2018)	6 small IT-/communic. device
galv. isolation of s/c outputs	nein
housing material lower section	PC
s/c output short circuit proof	ja
