Pilz

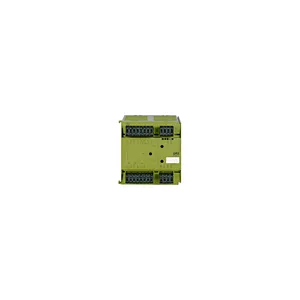

490193

Product type: P3WP3P C/5A/400VAC

Datasheet

Description

True power converter, measuring equipment for rated & absorbed true power, up to 3 motors/generators, measuring voltage 400 V AC, width width 90 mm, UB = 24 V DC.

Relay modules
Monitoring relays / monitoring devices
PMDsrange - monitoring relays
PMDsrange

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 490193.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.415 KG / psc.
Commodity number	90303330
Country of origin	FR
Dimensions (WxHxD)	94x90x121 mm
EAN code
Product group	7007
approval	CE UKCA
etim version	ETIM-7.0
gross weight	470 g
eclass version	ECLASS-9.1
terminal style	plug-in
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 V
ambient temperature	0 - 60 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 61000-6-2 EN 61000-6-4
etim reference group	EG000019
power consumption dc	2.5 W
condensation permitted?	Not permitted
eclass reference feature	27371806
flex. cond. c/s awg info	22 - 12 AWG
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
max. device circuit breaker	Max. conductor cross section
housing material front plate	ABS UL 94 V0
i meas. range analogue input	0 - 6 A
u meas. range analogue input	400 V
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
