Pilz

503221

Name: 503221
Brand: Pilz
Availability: PreOrder

Product type: PSEN 2.2p-21/PSEN2.2-20/LED/8mm 1unit

Description

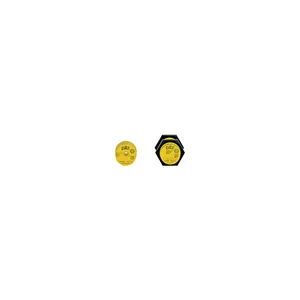

Magnetic safety switch 1 n/o 1 n/c, 4-pin M8 male connector, with LED, round M30 design, IP67, operating distance 8 mm, PU = 1 piece with actuator.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 503221.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.055 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	30x30x36 mm
EAN code
Product group	7045
cas no.	1317-36-8
approval	CE cULus Listed EAC (Eurasian) ECOLAB TÜV
unit type	Unit
etim version	ETIM-7.0
gross weight	63 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M8, 4-pin male
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
type 1 actuator	PSEN 2.2-20
reach compliance	contains min. 1 SVHC-substance
sensor principle	magnetic
switching voltage	24 V
supply voltage (v)	24 V
ambient temperature	-25 - 70 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
%-part of the pollutant	> 0,1%
acc. shock to standard1	30g
eclass reference feature	27272402
coding level to iso 14119	Low
reach included substances	Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
perm. operating height asl	2000 m
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
climatic suitability standard	IEC 60068-2-30
rohs except.s acc. to direct.	7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	yes
