Pilz

505223

Name: 505223
Brand: Pilz
Availability: PreOrder

Product type: PSEN 1.2p-23/PSEN 1.2-20/8mm/ATEX/ 1unit

Description

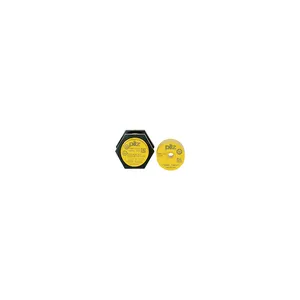

Magnetic safety switch 2 n/o, 4-pin M8 male connector, M30 design, IP67, switching distance 8 mm, PU = 1 piece with actuator,ATEX approval.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 505223.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.031 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	30x30x42.7 mm
EAN code
Product group	7045
approval	CE cULus Listed ATEX electrosuisse EAC (Eurasian) TÜV ECOLAB
unit type	Unit
etim version	ETIM-7.0
gross weight	63 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M8, 4-pin male
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
type 1 actuator	PSEN 1.2-20
reach compliance	Contains no SVHC substances
sensor principle	magnetic
atex category gas	II 3G Ex mc nAc IIC T6
switching voltage	24 V
atex category dust	II 3D Ex mc tc IIIC T80°C
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
acc. shock to standard1	30g
atex application area x	X: -10°C ≤ ta ≤ +55°C
atex certificate number	SEV 12 ATEX 0121 X
eclass reference feature	27272402
coding level to iso 14119	Low
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
perm. operating height asl	2000 m
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
climatic suitability standard	IEC 60068-2-30
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	no
