Pilz

506247

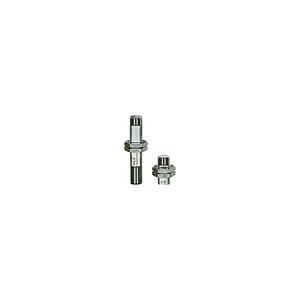

Product type: PSEN ma1.3-22M12/8/PSENma1.3-08/IX/VA/1U

Datasheet

Description

Safety sensor for position monitoring of moveable guards in accordance with EN 60947-5-3, 2 n/o, 1 auxiliary contact n/o,8-pin M12 male connector, for applications up to SIL 3/PL e/Cat. 4,cylindrical design M12, IP69, PU = 1 sensor with M12 actuator, operating distance 8mm for applications with PSEN ix1, stainless steel housing.

Sensor technology
Safety switches
PSENmag - non-contact, magnetic safety switches
PSENmag for electronic/electromechanic relays

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 506247.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.03 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12x12x61 mm
EAN code
Product group	7045
approval	CE UL/cUL TÜV ECOLAB EAC (Eurasian)
unit type	Unit
etim version	ETIM-7.0
gross weight	40 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M12, 8-pin male
humidity rating	90 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
type 1 actuator	PSEN ma1.3-08 VA
reach compliance	Contains no SVHC substances
sensor principle	magnetic
switching voltage	24 V
supply voltage (v)	24 V
ambient temperature	-25 - 120 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
ambient temp. with ul	-25 - 105 °C
acc. shock to standard1	30g
eclass reference feature	27272402
coding level to iso 14119	Low
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
perm. operating height asl	4000 m
housing material upper part	Stainless steel 1.4401
sensor can be flush-mounted	Yes, follow installation guide
climatic suitability standard	IEC 60068-2-30
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	yes
utilisation cat. reed contacts	DC-12
