506301

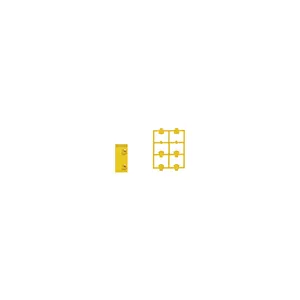

Product type: PSEN ma1.4-10mm 1actuator

Description

Actuator for magnetic safety switch, square design, IP67, operating distance 10 mm, height design 18 mm, PU = 1 actuator.
Read More
  • Sensor technology
  • Safety switches
  • PSENmag - non-contact, magnetic safety switches
  • PSENmag for electronic/electromechanic relays
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.017 KG / psc.
Commodity number85365019
Country of originCH
Dimensions (WxHxD)18x37x18 mm
EAN code
Product group7045
approval CE cULus Listed EAC (Eurasian) TÜV
unit type Actuator
etim version ETIM-7.0
gross weight 22 g
eclass version ECLASS-9.1
ambient temperature -10 - 55 °C
emc to standard ... EN 60947-5-3
etim reference group EG000026
acc. shock to standard1 30g
eclass reference feature 27272404
vibration to standard ... EN 60947-5-2
housing material upper part PBT
weee classifikation (08/2018) 5 devices (feed size < 50cm)
pollution degree clear.&creep. 3
