Pilz

506401

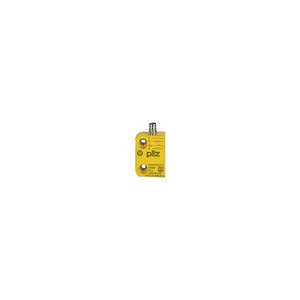

Product type: PSEN ma2.1p-11/LED/3mm/1switch

Datasheet

Description

Magnetic safety switch 1 n/o 1 n/c, 4-pin M8 male connector, square design, LED, IP67, operating distance 3 mm, height design 13 mm, for series connection with PSEN i1, PU = 1 sensor without actuator.

Sensor technology
Safety switches
PSENmag - non-contact, magnetic safety switches
PSENmag for electronic relays

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 506401.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.02 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	26x36x13 mm
EAN code
Product group	7045
cas no.	1317-36-8
approval	CE cULus Listed TÜV EAC (Eurasian)
unit type	Sensor
etim version	ETIM-7.0
gross weight	25 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M8, 4-pin male
rohs conformity	yes
rohs exceptions	yes
type 1 actuator	PSEN 2.1-10
reach compliance	contains min. 1 SVHC-substance
sensor principle	magnetic
switching voltage	24 V
supply voltage (v)	24 V
ambient temperature	-25 - 70 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
%-part of the pollutant	> 0,1%
acc. shock to standard1	30g
eclass reference feature	27272402
coding level to iso 14119	Low
reach included substances	Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
rohs except.s acc. to direct.	7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	yes
