Pilz

516140

Name: 516140
Brand: Pilz
Availability: PreOrder

Product type: PSEN ma1.3-08/VA/1actuator

Description

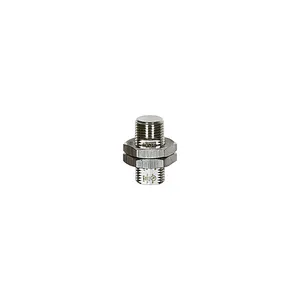

Actuator for magnetic safety switch, cylindrical design, M12, IP69, operating distance 8 mm, PU = 1 actuator, stainless steelhousing.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 516140.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.01 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	0x0x25 mm
EAN code
Product group	7045
approval	CE UL/cUL TÜV ECOLAB EAC (Eurasian)
unit type	Actuator
etim version	ETIM-7.0
gross weight	12 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	90 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
sensor principle	magnetic
ul enclosure type	Type 1
ambient temperature	-25 - 120 °C
etim reference group	EG000026
ambient temp. with ul	-25 - 105 °C
eclass reference feature	27272404
perm. operating height asl	4000 m
housing material upper part	Stainless steel 1.4401
climatic suitability standard	IEC 60068-2-30
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
