Pilz

526120

Name: 526120
Brand: Pilz
Availability: PreOrder

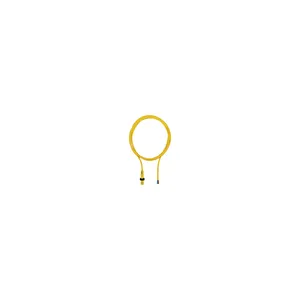

Product type: PSEN ma1.3a-20/1switch

Description

Magnetic safety switch 3 n/o, round M12 design, IP67, 5 m cable, PU = 1 piece without actuator, certification (TÜV, EAC, UL,ECOLAB approved).

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 526120.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.185 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	0x0x59.1 mm
EAN code
Product group	7045
approval	CE cULus Listed ECOLAB EAC (Eurasian) TÜV
unit type	Sensor
cable lines	LiY11Y 6 x 0.25 mm2
etim version	ETIM-7.0
gross weight	195 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	5 m cable
rohs conformity	yes
rohs exceptions	no
type 1 actuator	PSEN ma1.3-08
reach compliance	Contains no SVHC substances
sensor principle	magnetic
switching voltage	24 V
supply voltage (v)	24 V
ambient temperature	-25 - 70 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272402
coding level to iso 14119	Low
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	no
