540132

Product type: SDD ES PROFIBUS

Datasheet

Description

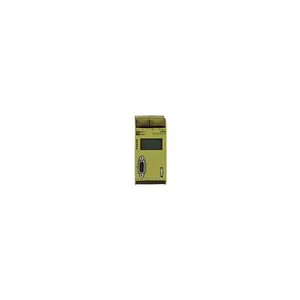

SDD (Safety Device Diagnostics), fieldbus module, standard, Profibus DP,9 DP-V0, 9-pin D-Sub connector, 6 digital inputs/outputs, plug-in connection terminals (not supplied with the unit).

Networks
Device Diagnostics System
Safety Device Diagnostics
Fieldbus modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 540132.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.16 KG / psc.
Commodity number	85176200
Country of origin	DE
Dimensions (WxHxD)	45x115x95 mm
EAN code
Product group	7129
cas no.	7439-92-1
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	175 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	90 % r. h. at 55 °C
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
mounting position	any
fieldbus interface	Profibus DP-V0
supply voltage (v)	24 V
ambient temperature	0 - 55 °C
connection fieldbus	9-pin D-Sub male connector
connection terminal	Screw terminal plug-in Spring-loaded terminal, plugin
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-3
etim reference group	EG000024
fieldbus device type	Slave
power consumption dc	2 W
%-part of the pollutant	> 0,1
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242608
flex. cond. c/s awg info	24 - 12 AWG
galv. isolation fieldbus	Yes
number of digital inputs	6
protection type standard	EN 60529
name of fieldbus protocol	PROFIBUS
reach included substances	Lead
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
housing material upper part	PC
number of semicond. outputs	6
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	PROFIBUS and system voltage
rohs except.s acc. to direct.	7a 7c I
selectable transmission rates	6 MBit/s 500 kBit/s 93.75 kBit/s 12 MBit/s 19.2 kBit/s 1.5 MBit/s 187.5 kBit/s 3 MBit/s 9.6 kBit/s 45.45 kBit/s
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
perm. fieldbus station address	1 ... 125d
s/c output short circuit proof	Yes
