Pilz

540328

Product type: PSEN Y junction M12-M12/M12

Datasheet

Description

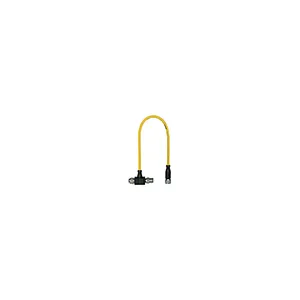

Cable Y-adapter- with T-plug-in connector, IP67, M12 male connector (X2, evaluation device), 8-pin, A-coded on M12 female connector (X1, sensor/next plug-in connector), 8-pin, A-coded and M12 female connector (X3, sensor), black, straight, 8-pin, A-coded, PUR, 0.25 m, 8× 0.25 mm², yellow, to connect PSENcode and PSENslock.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Adapter
PSEN Y junction M12-M12/M12

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 540328.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.045 KG / psc.
Commodity number	85366990
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
cas no.	7439-92-1
approval	CE UKCA
etim version	ETIM-7.0
gross weight	50 g
length cable	0.25 m
shielding k1	no
stranding k1	8 cores round filler
cable type k1	Li9Y11Y
rated current	2 A
seal material	FPM
eclass version	ECLASS-9.1
housing colour	Black
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	8-pin M12 female connector
connector type 2	8-pin M12 male connector
connector type 3	8-pin M12 female connector
housing material	TPU, UL94
material of pins	CuZn
reach compliance	contains min. 1 SVHC-substance
cable material k1	Cu
ambient temperature	-25 - 80 °C
material of sockets	CuZn
etim reference group	EG000026
number of conductors	8
approvals for cable k1	UL AWM-Style 20549
%-part of the pollutant	> 0,1
conductor cross section	0.25 mm²
eclass reference feature	27272492
approvals for connector 1	UL 94
approvals for connector 2	UL 94
approvals for connector 3	UL 94
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
coding of m12 connector 3	A coded
colour cable insulation 1	Signal yellow RAL1003
matl threaded ring conn 1	GD-Zn, Ni
matl threaded ring conn 2	GD-Zn, Ni
reach included substances	Lead
cable cross section awg k1	24
contact surfaces material 1	Ni, Au gal.
contact surfaces material 2	Ni, Au gal.
contact surfaces material 3	Ni, Au gal.
bend radius (when laying) k1	6 x Ø
housing material connector 3	PA
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	78 Ohm/km
material threaded ring conn 3	GD-Zn, Ni
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U
max. outside diameter cable k1	6.2 mm
pollution degree clear.&creep.	3
specific contact resistance k1	>= 1E+16 Ohm*cm
